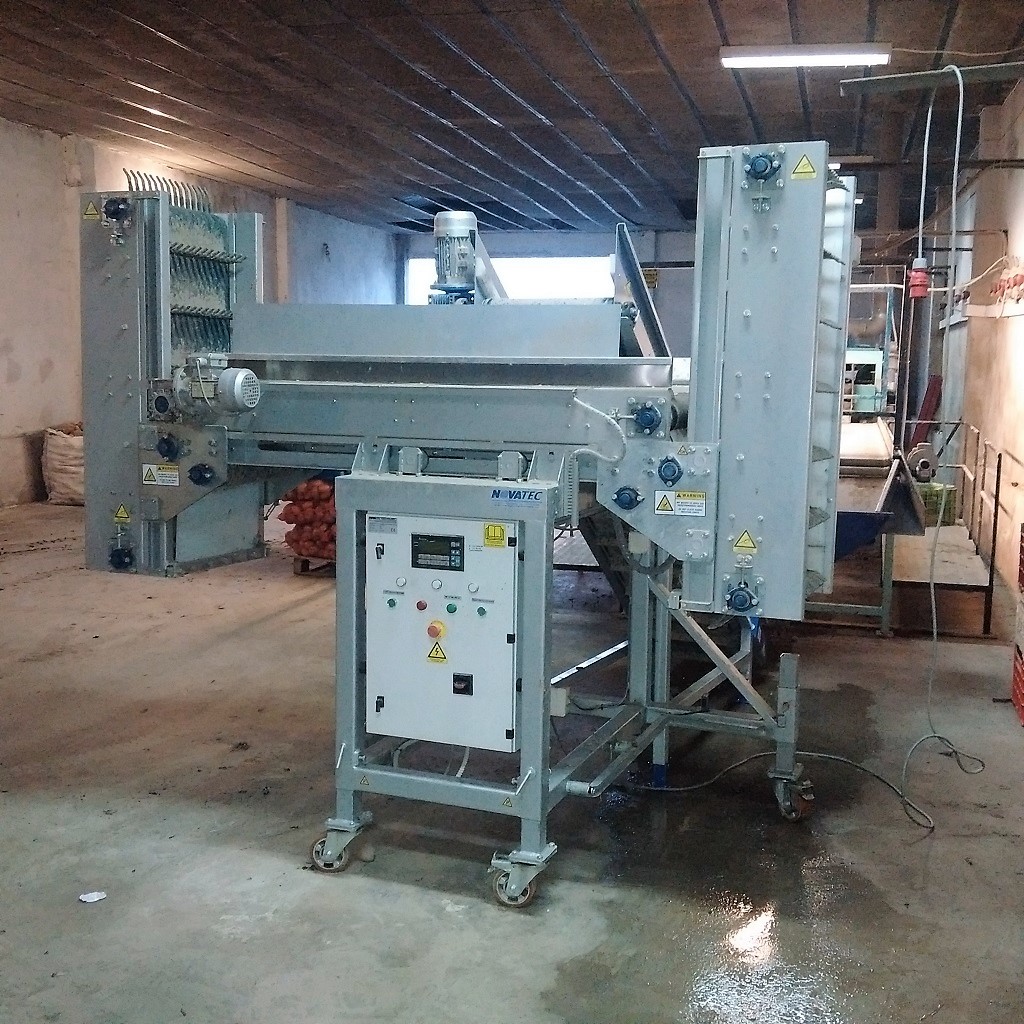

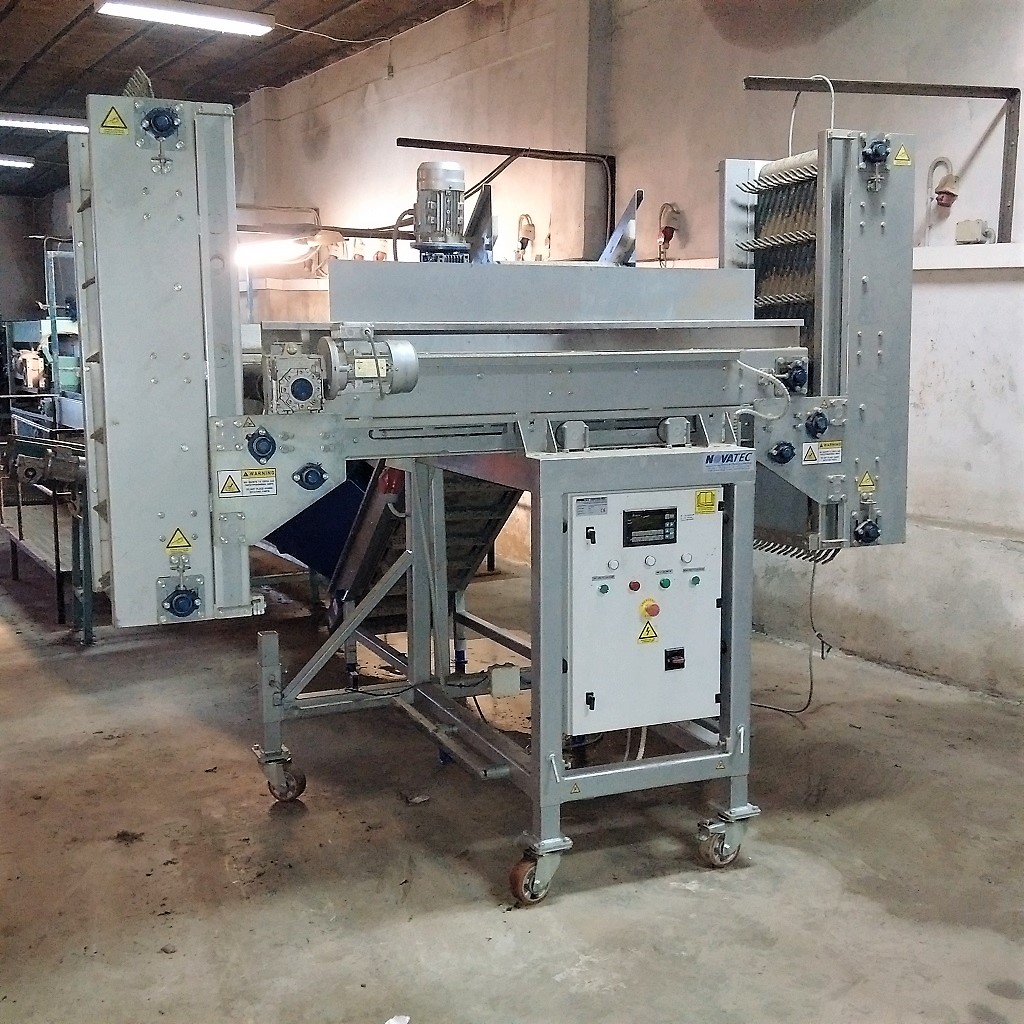

Swing Fill Twin Head Bins Filler FB 100

  • Thumbnail
  • Thumbnail
  • Technical Description


    The machine is suitable for filling various size of Pallet Boxes (Bins), in an automatic mode. Suitable for products such as potatoes, onions, carrots, garlic and other hard root vegetables for filling bins and pallet box with sorted and cleaned products, helping in quick and easy packaging and storage in cold rooms or in their transport. The filling of bins or boxes is achieved in a very gentle & smooth way by preventing products hitting, through a lifting platform, controlled by photocell sensors. The food grade Finger Belt (vertical), gently delivering the product inside the lower layers of Boxes.

    Technical Features:

    • Metal structure which has been properly welded and treated with three layers of polyurethane varnish
    • Food grade Cross Conveyor Belt (horizontal), endless belt, with reversible geared motor drive
    • Main drive by means of proper gear motor with reversible drive for the Cross Conveyor
    • Two (2) food grade Finger Belt (vertical) for gentle lowering of the product into the Pallet Boxes
    • Two (2) main drive by means of proper gear motor for the Finger Belts
    • Specially designed system for horizontal movement of the Filling System
    • Main drive by means of proper gear motor for the horizontal movement of the Filling System
    • Two (2) PVC belts for the vertical movement of the two Finger Belts, with a motor drive
    • Two (2) main drive by means of proper gear motor for the lifting of the Finger Belts
    • Two (2) special type sensors for controlling the filling rate, place in the end of each vertical Finger Belt Conveyor (swinging). As the Pallet Box is filled the sensor reacts and activates the step by step move of the vertical Finger Belt Conveyor. When the box is full, the horizontal belt reverses motion in order to fill the other side.
    • Series of Photocell sensors for detecting weather the next empty Pallet Box is places on the correct position. If no box or bag is placed the machine stops until the next empty box or bag is placed
    • Series of safety sensors for the Inferior / Superior position of the vertical belt and the left and right edge of the horizontal displacement of the machine. (Fully adjustable based on customer requirements)
    • Electric control panel of the machine, with PLC control system
    • Automatic and manual operation mode
    • Optional: Electronic Weighing Scales
    • Capacity: Up to 25 Tons / Hour
    Can Handle:
    Category: Filling
Novatec Engineering designs and manufactures complete solutions for post-processing and packaging. We can provide with the best technical solutions for the handling, processing and packaging of your fruits and vegetables
