Swing Fill Twin Head Bins Filler FB 200S

  • Thumbnail
  • Thumbnail
  • Thumbnail
  • Thumbnail
  • Thumbnail
  • Technical Description

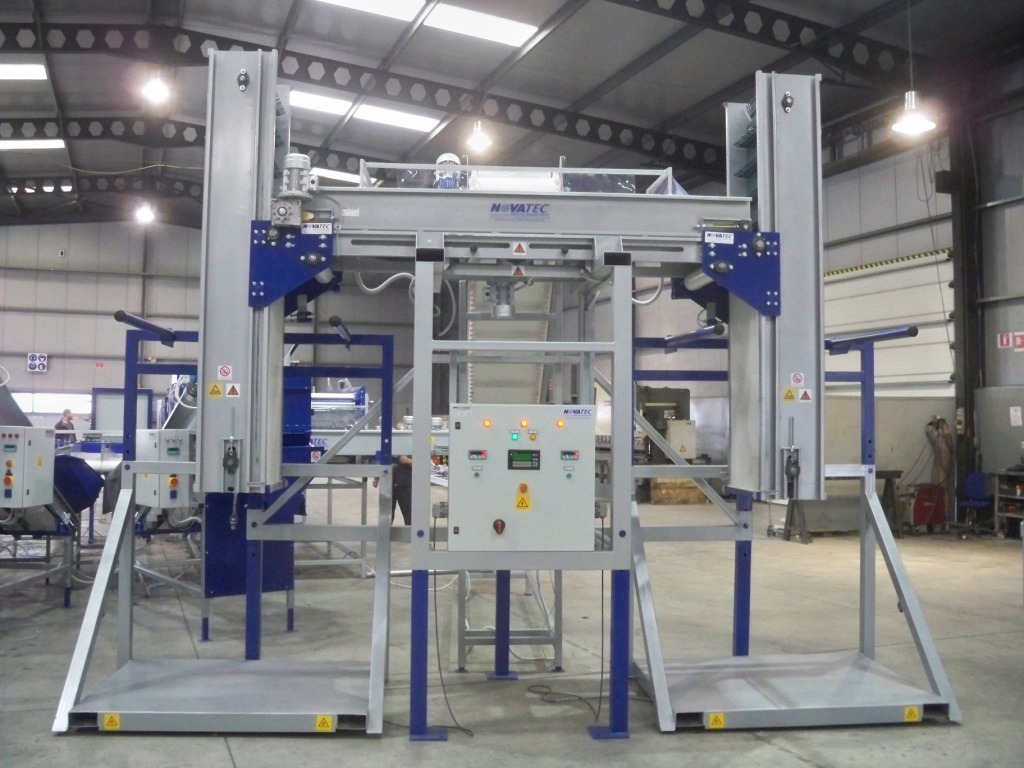

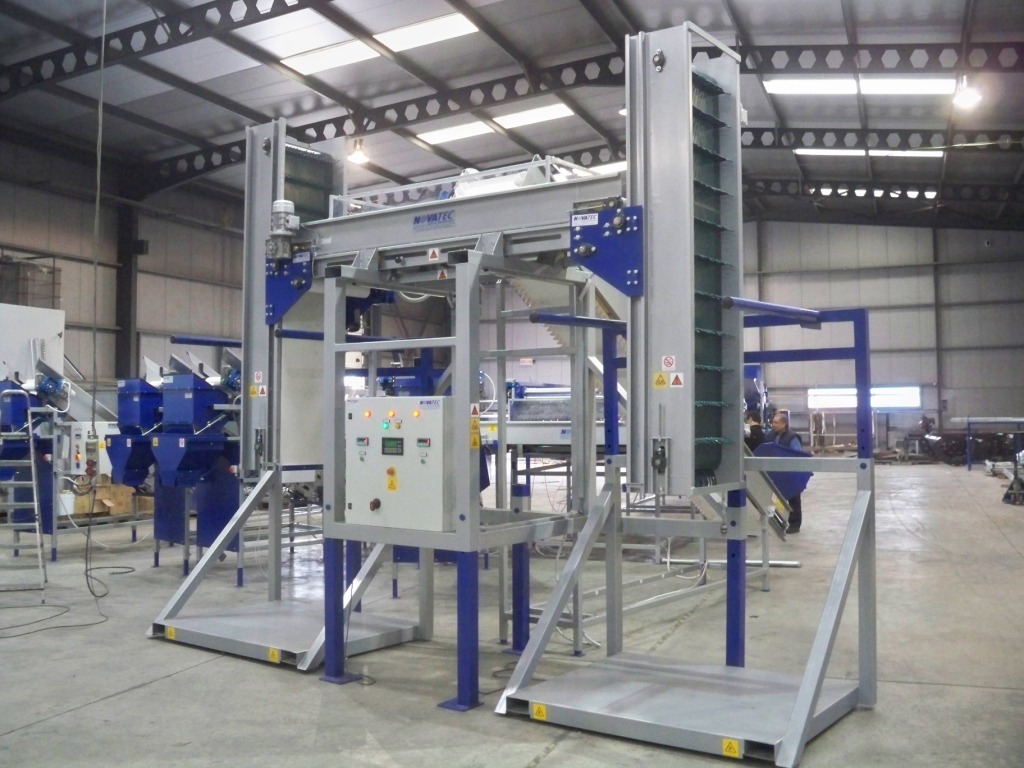

    The machine is suitable for filling various size of Big - Bag (Jumbo Bags) and Pallet Boxes (Bins), in an automatic mode. Suitable for products such as potatoes, onions, carrots, garlic and other hard root vegetables for filling sacks, bags and pallet box with sorted and cleaned products, helping in quick and easy packaging and storage in cold rooms or in their transport. The filling of bags or boxes is achieved in a very gentle & smooth way by preventing products hitting, through a lifting platform, controlled by photocell sensors.

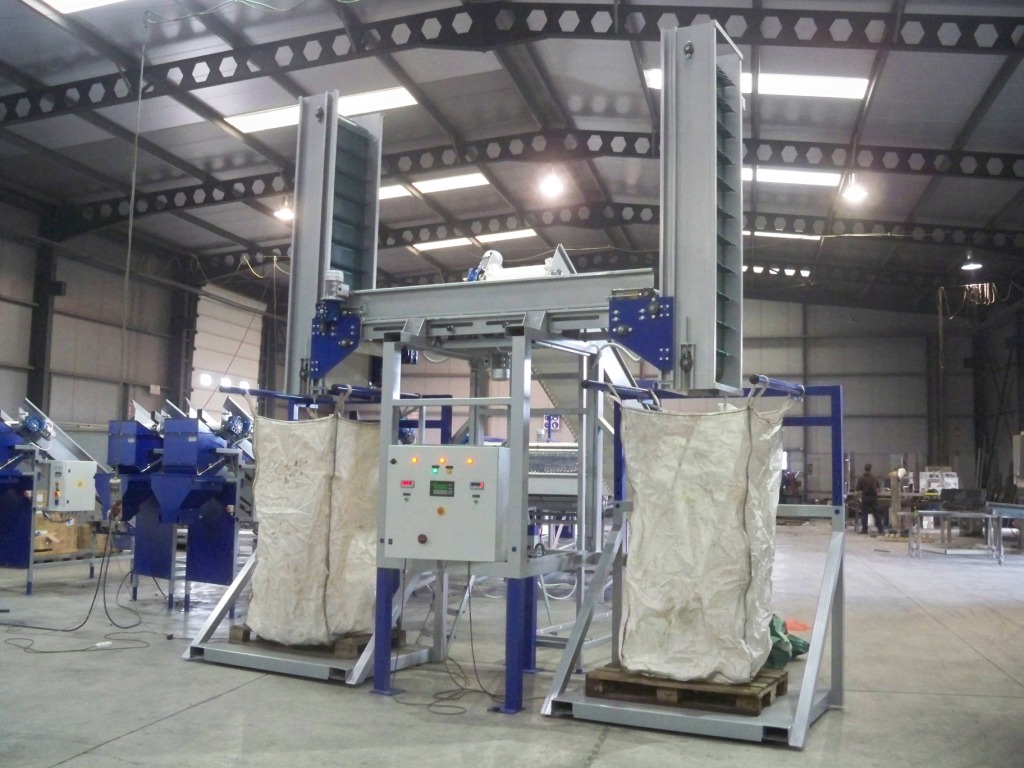

    The bag is supported on the four corner hooks. The height of the bag including the loops is 2 meter overall. The two (2) food grade Finger Belt (vertical), gently delivering the product inside the lower layers of Boxes or the Big-Bag.

    Technical Features:

    • Metal structure which has been properly welded and treated with three layers of polyurethane varnish

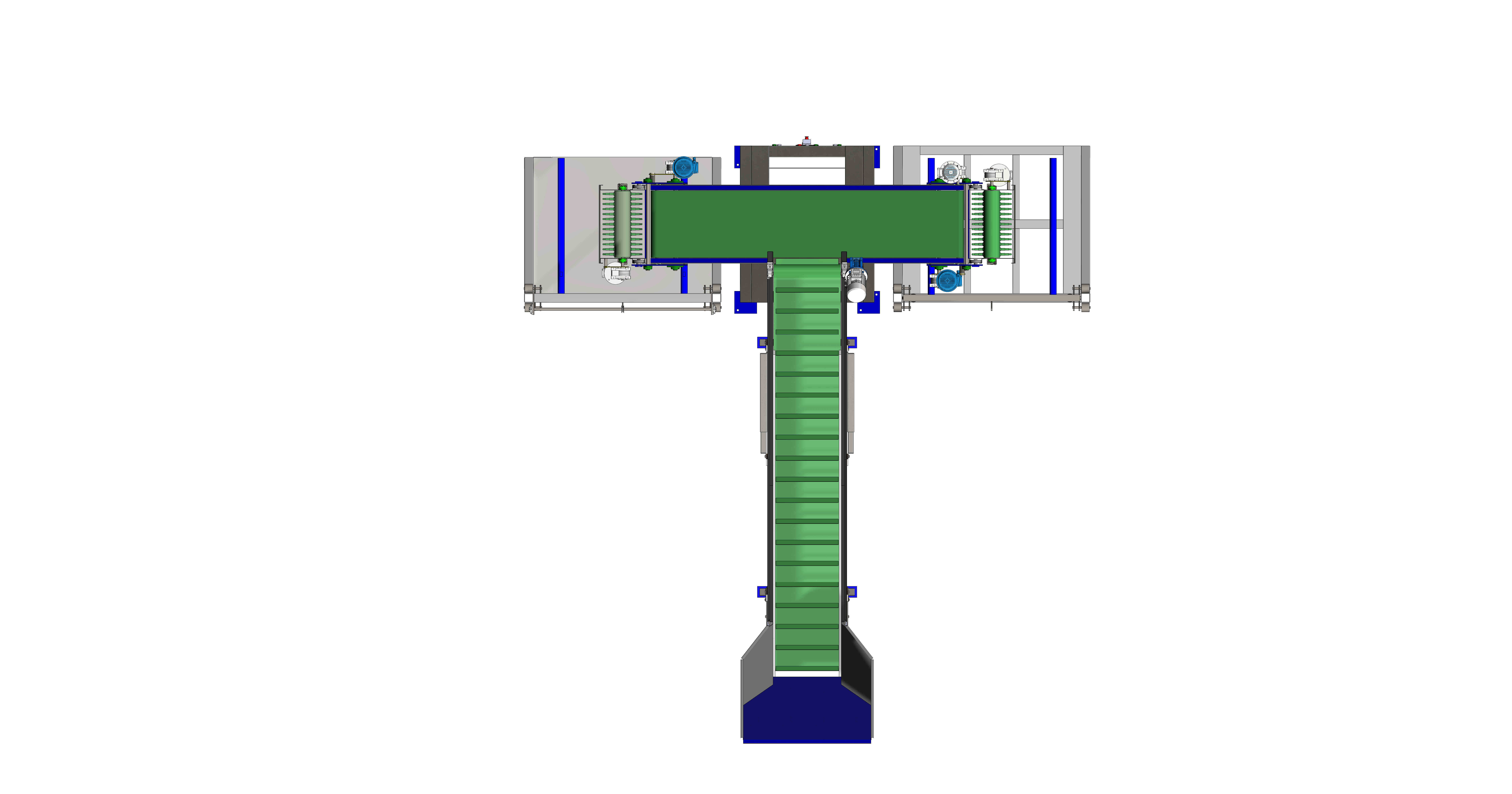

    • Food grade Cross Conveyor Belt (horizontal), endless belt, with reversible geared motor drive
    • Main drive by means of proper gear motor with reversible drive for the Cross Conveyor

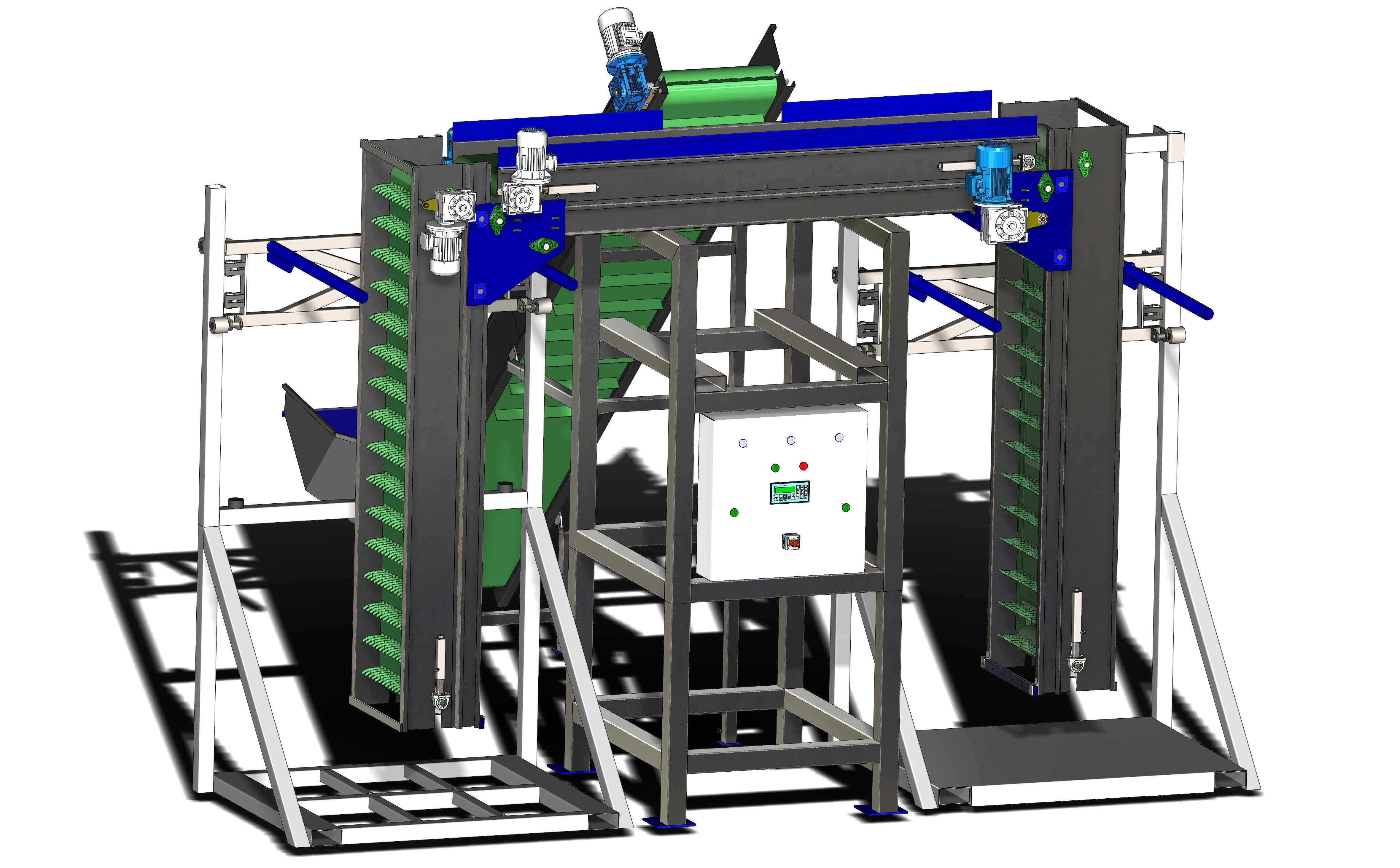

    • Two (2) food grade Finger Belt (vertical) for gentle lowering of the product into the Boxes or the Big Bag
    • Two (2) main drive by means of proper gear motor for the Finger Belts
    • Specially designed system for horizontal movement of the Filling System
    • Main drive by means of proper gear motor for the horizontal movement of the Filling System
    • Two (2) PVC belts for the vertical movement of the two Finger Belts, with a motor drive
    • Two (2) main drive by means of proper gear motor for the lifting of the Finger Belts
    • Two (2) special type sensors for controlling the filling rate, place in the end of each vertical Finger Belt Conveyor (swinging). As the bag or box is filled the sensor reacts and activates the step by step move of the vertical Finger Belt Conveyor. When the box or the bag is full, the horizontal belt reverses motion in order to fill the other side.
    • Series of Photocell sensors for detecting weather the next empty Bag or Box is places on the correct position. If no box or bag is placed the machine stops until the next empty box or bag is placed
    • Series of safety sensors for the Inferior / Superior position of the vertical belt and the left and right edge of the horizontal displacement of the machine. (Fully adjustable based on customer requirements)
    • Electric control panel of the machine, with PLC control system
    • Automatic and manual operation mode
    • Two (2) specially designed frame for supporting the Big-Bags for easy hanging and un-hanging for the bags. Easily adjustable height for different kind of bags
    • Optional: Electronic Weighing Scales
    • Capacity: Up to 25 or 30 Tons / Hour

    Dimensions:

    Length: 5.650 mm

    Width: 5.900 mm

    Height: 3.500 mm (Up to 5.500 mm approx. in top position)
