Cascade Single Head Zig-Zag Big Bag Filler ZZ 100

Novatec's Zig-Zag Big Bag Filler is designed to fill Big Bags continuously in the most gentle way possible.
Ask Information
Technical Information Gallery Downloads

Technical Description

The machine is suitable for filling various size of Big - Bag (Jumbo Bags) and pallet boxes (Bins), in an automatic mode. Suitable for products such as potatoes, onions, carrots, garlic and other hard root vegetables for filling Big - Bags and pallet boxes. The filling of bags or boxes is achieved in a very gentle & smooth way by preventing products hitting, through a filling system with plastic cascade lowers (Zig-Zag), controlled by photocell sensors.

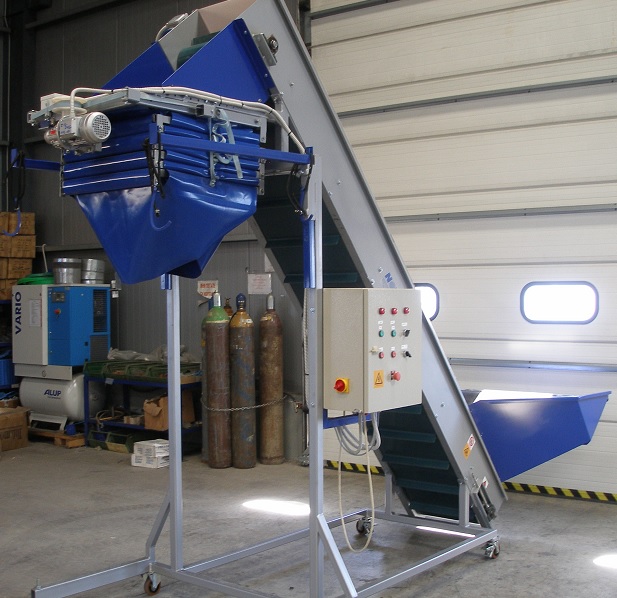

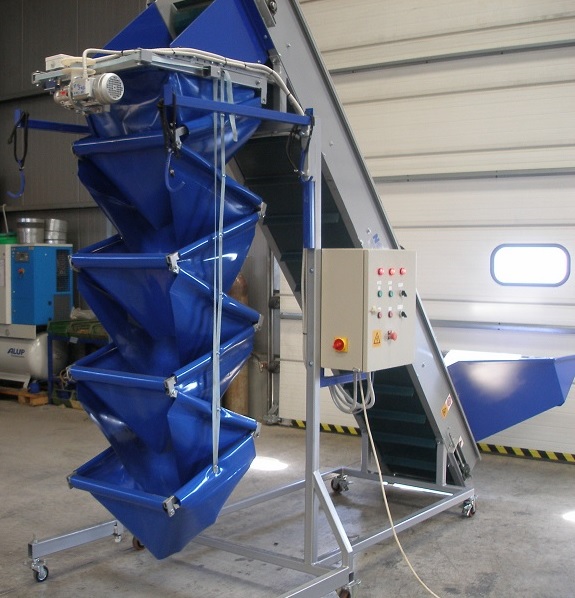

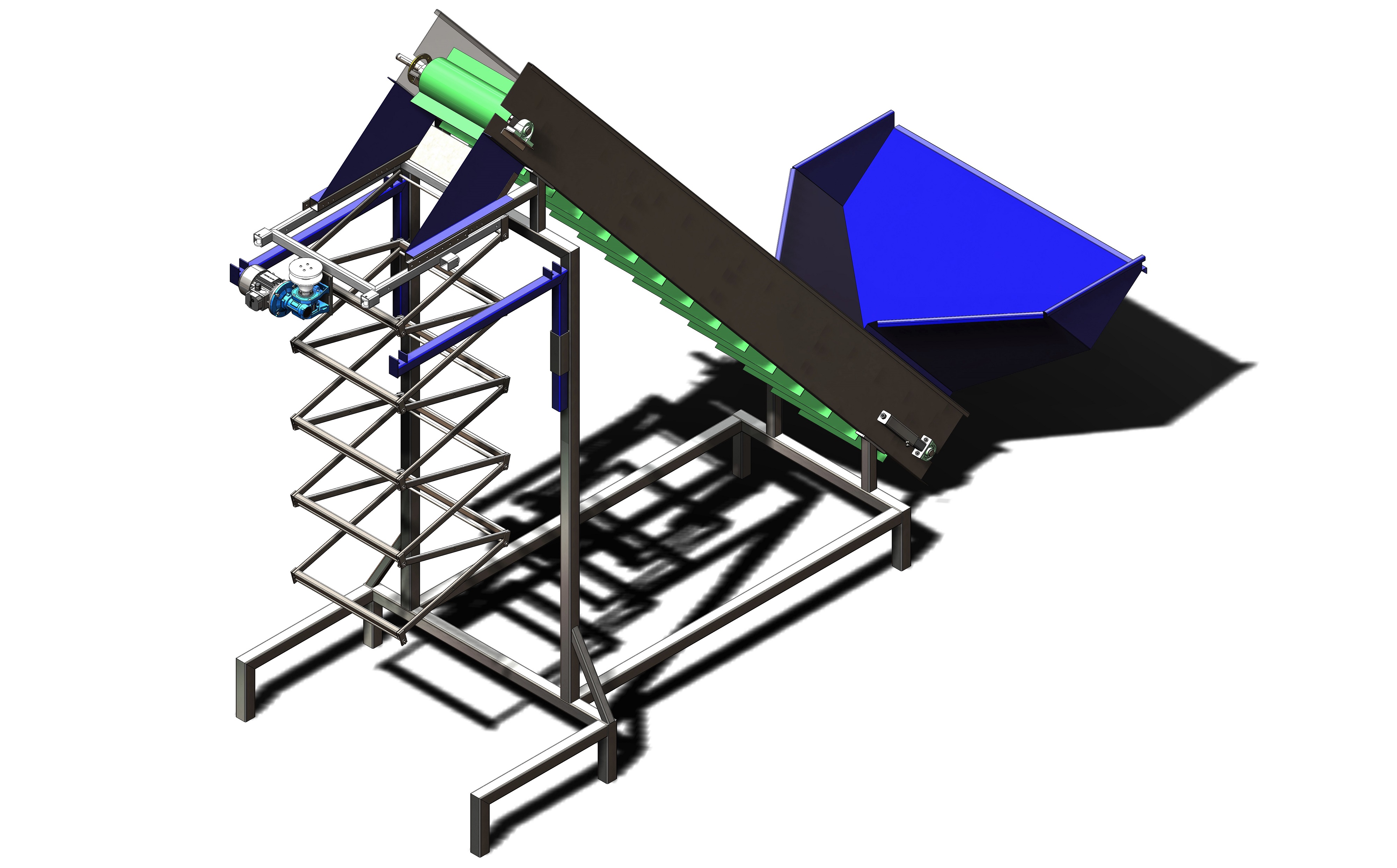

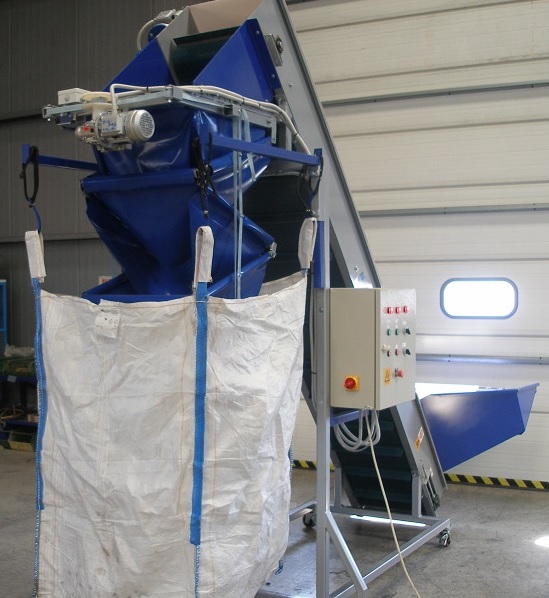

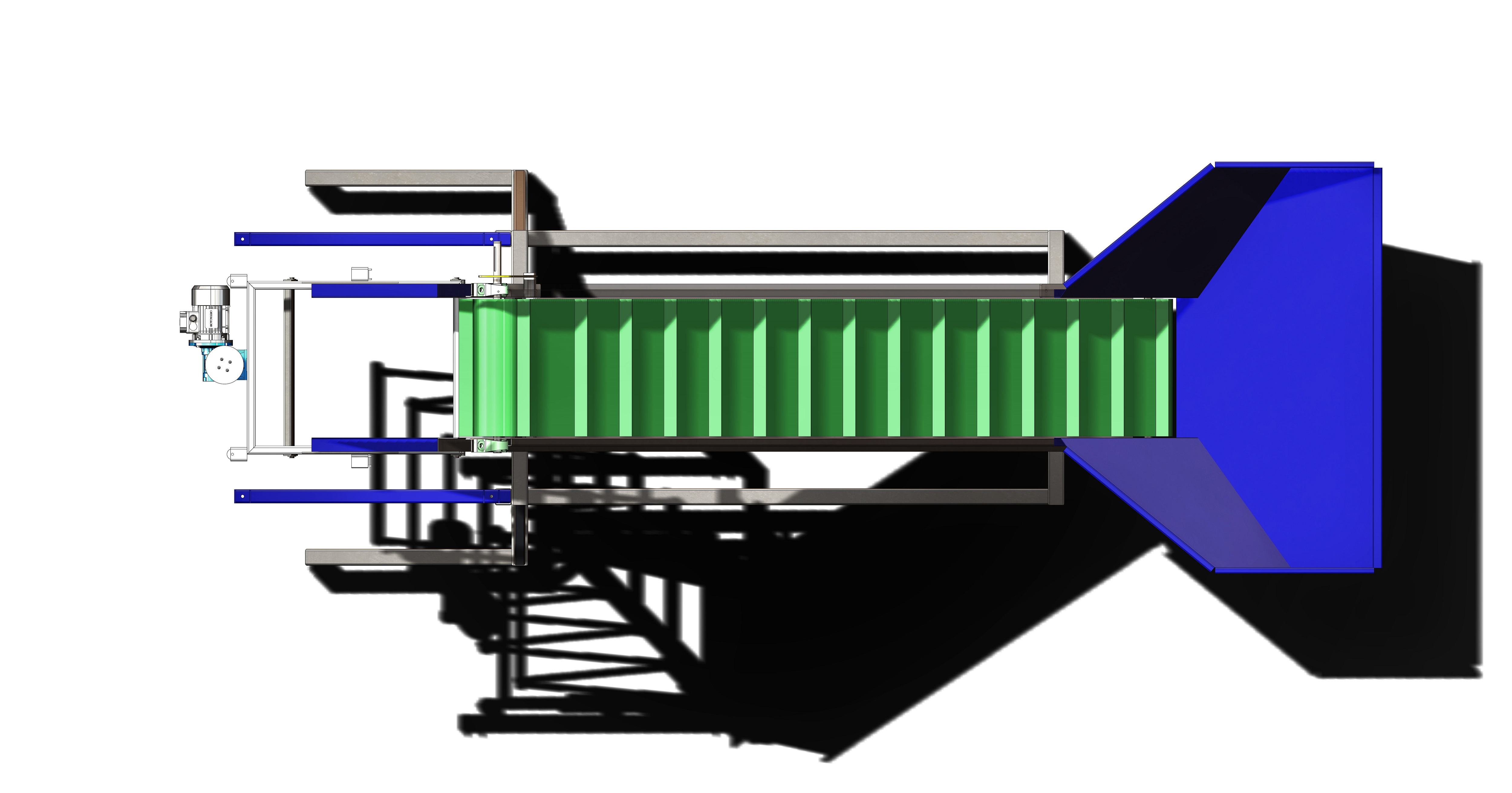

The bag is supported on four corner hooks. The cascade lowers into the bag, a sensor starts the feed, as the bag is filled the cascade retracts, when the bag is full the Elevator stops.

Technical Features:

  • Metal structure which has been properly welded and treated with three layers of polyurethane varnish
  • Feeding Elevator, with food grade, PVC conveyor belt, specially designed for potatoes and onions
  • Electronic synchronization of the Feeding Elevator and the big –bag filling machine
  • Single cascade unit mounted on the frame of the feeding elevator
  • Main drive of  the Zig-Zag filling system, with a proper motor reducer
  • Special type sensor for controlling the filling rate, placed in the end of the vertical cascade system
  • As the big-bag or box is filled, the sensor reacts and activates the step by step wrapping of the cascade system
  • Electric control panel of the machine, with PLC control system
  • Automatic and manual operation mode
  • Optional: Electronic Weighing Scales

Model

Capacity

Dimensions

Height

CASCADE SINGLE HEAD ‘’ZIG-ZAG,, BIG BAG FILLER Mod. ZZ 100

Up to 10 Tons / Hour

(Depending on the product, the type of container Boxes or Big Bags and the weight of them etc.)

4.050 mm x 1.560 mm

3.580 mm
